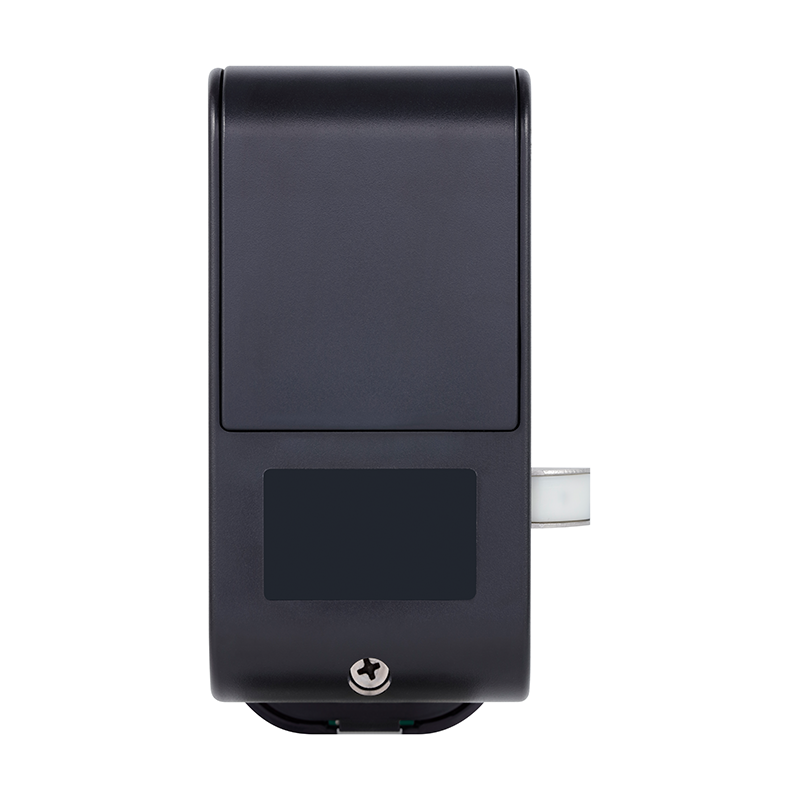

  • C5S Cabinet Lock A Back

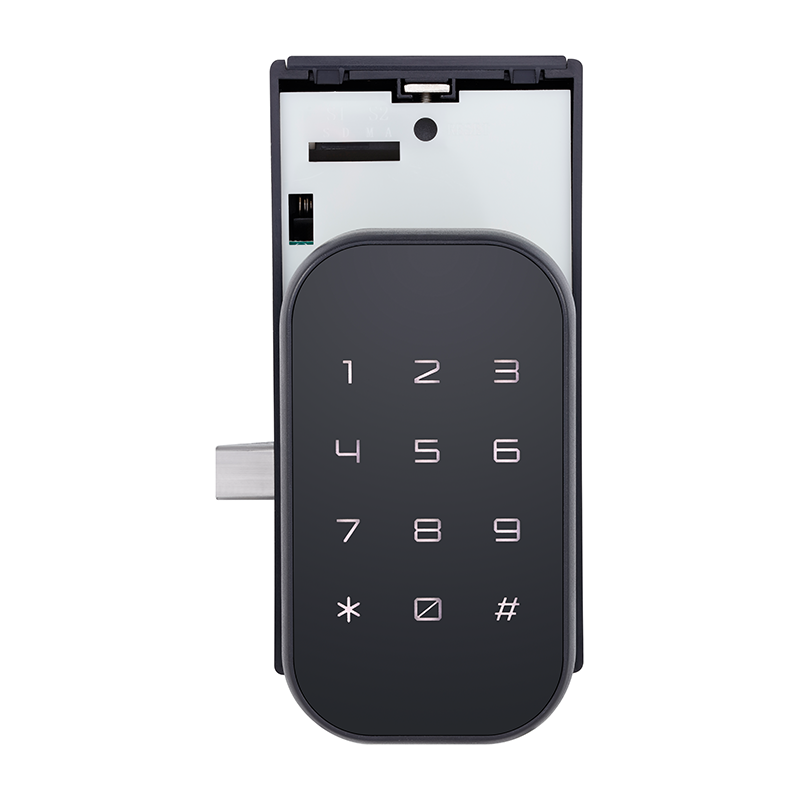

  • C5S cabinet lock A front

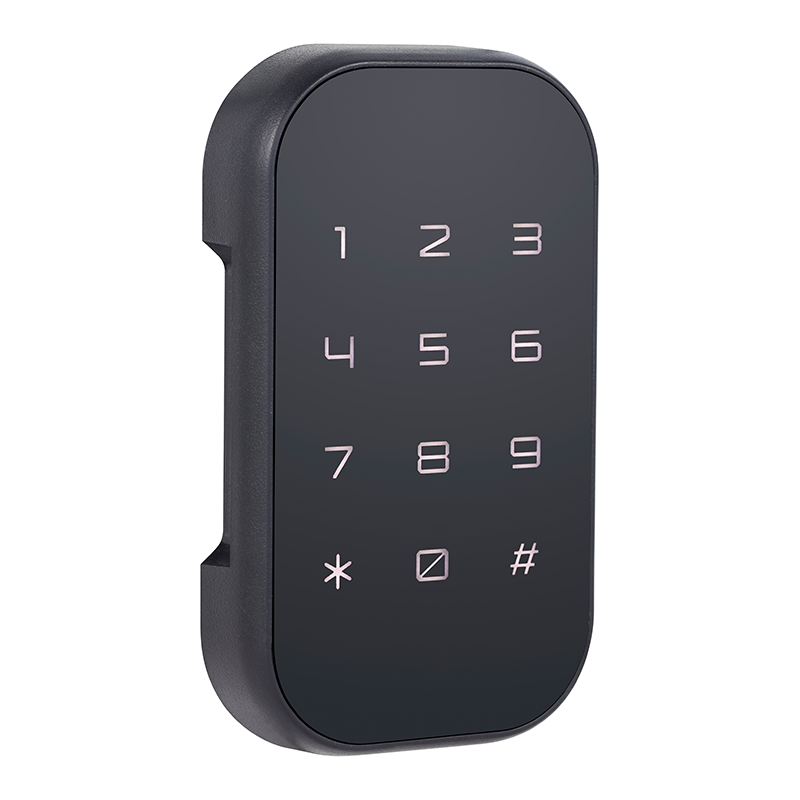

  • C5S Cabinet Lock A Panel
  • C5S cabinet lock A front side
  • C5S Cabinet Lock A Back
  • C5S cabinet lock A front
  • C5S Cabinet Lock A Panel

C5S LOCKER LOCK

RFID Specification:

  • Card, password two unlocking methods make it highly cost-effective .

  • Both public and private mode, authority management could meet a vari- ous application scenarios for projects.

  • Anti-pry alarm and other functions to help you safely keep the items.

Main Features of the Product

  • Unlock method: Key card and password unlocking are available for client to use.

  • Temporary password: One-time or long-term Temporary password function can suit for more scenario.

  • Authority management: It has three levels of management authority, which is convenient for commercial management. It can be used by the owner, manager and the customer with different functions and authority.

  • Anti-pry alarm: When it detects any prying,it will trigger the warning.

  • Scramble code: You can enter random numbers prior to the right code when it is likely of exposing the password to others.

  • Automatic/manual lock mode: It can switch between automatic locking mode and manual locking mode to meet different scenarios.

  • Low power warning: It will makes sound to alert you it’s time to replace batteries.

Technical Data

Material: ABS (C5 Front Body)
ABS (Back Body)
Dimension: 104×60×16mm (C5S Front Body)
139×65×27mm (Back Body)
Emergency Cylinder: No
Battery: 4×AA
Humidity: RH(%): 10% ~ 93%
Pin-code: Up to 2 groups (1 Master code, 1 temporary code)
Card (C5S): Up to 7 cards (1 Owner card, 5 Master card, 1 guest card)
Door Type: Wood, Steel
Door Thickness Range: 0.47~0.98”(12~25mm)
