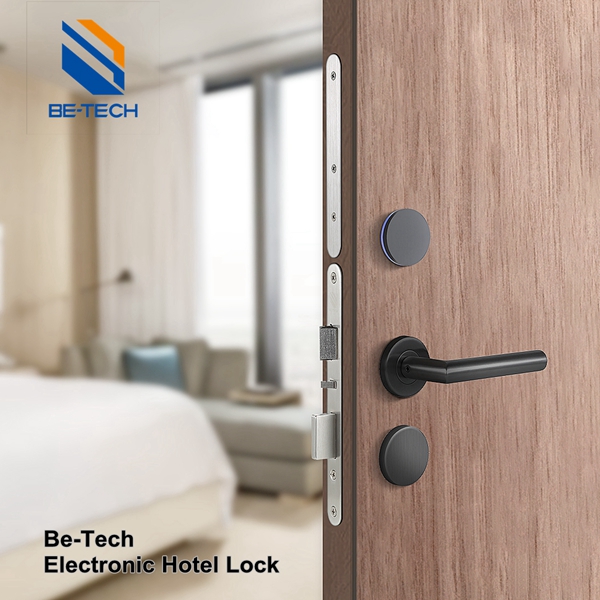

Electronic Hotel Lock - SHADOW II RFID


Be-Tech SHADOW II RFID series is especially designed for the hotels with the desire of making sure the lock blends perfectly with the necessary hardware and the door.

Be-Tech SHADOW II RFID series is especially suited for the contemporary and modern hotel environment. It enhances the overall image of the corridor with the aesthetic lock’s design which perfectly blends into hotel decoration style.

Less on door, Always is more. With Be-Tech SHADOW II RFID series, it allows architects and designers maximum design freedom and minimum appearance on door in terms of preserving the door aesthetics.

RFID Specification:

  • 13.56MHz technology

  • Compatible with the following standard ISO 14443 A (MIFARE Classic)

  • Eleven free sectors for future All-in-one card application use

Main Features of the Product

  • Stand alone electronic lock with RFID technology.

  • High security stainless steel mortise lockcase available in DIN version.

  • Stainless steel handle with long lasting painting finish.

  • 3-point stainless steel latch construction with antifriction mechanism.

  • Mortise equipped 20mm throw high strength deadbolt.

  • Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.

  • ADA compliant (guest with physical disabilities).

  • Future proof re-programmable FLASH RAM lock memory.

  • Powered by four AA batteries that provide up to 1 year normal life time.

  • 1000 event audit trail.

  • Compatible with BIS HOTEL software platform.

  • High security mechanical override cylinder available.

S6 600

Technical Data

Power 4x 1.5V AA alkaline batteries
Battery Location Inside of the door
Material Handles: Stainless steel quality SUS304
Sensor PC
Metal Finishes Silver, Matte Black
Emergency Opening Options Emergency Opening with Mechanical cylinder
Locking Mechanism Electro-mechanical locking mechanism
Door Thickness 35 -60mm
System Software Compatibility BIS Hotel
Storage Temperature Workable -20°C~60″C: non-condensing environment
Tested Operating Temperature Tested from -25°C~70C
Mortise Compatible with DIN 65 mortise
Supported RFID Standard ISO 14443 A (MIFARE Classic)
