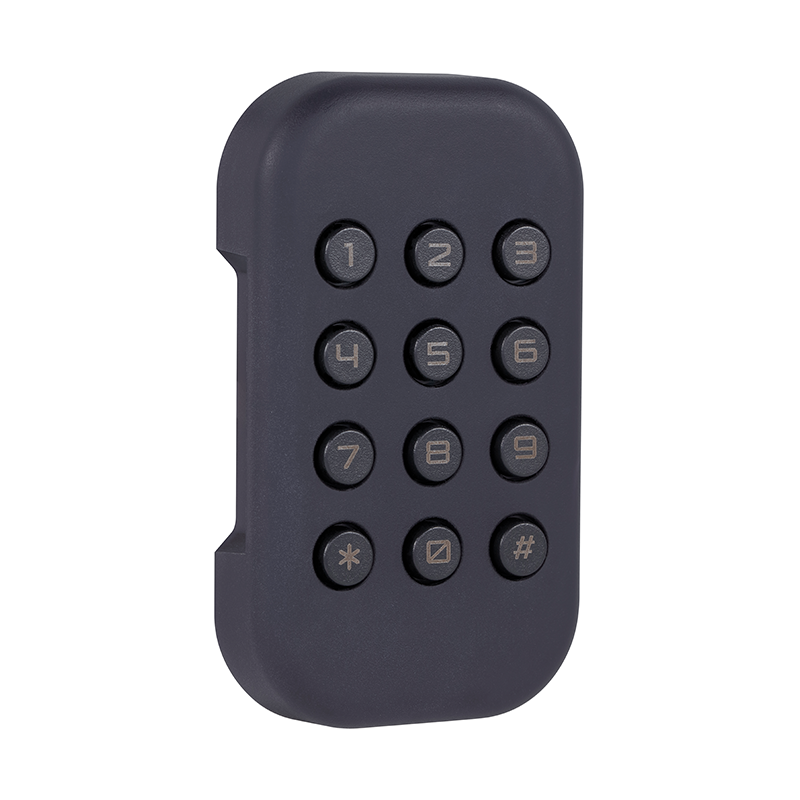

  • C5 Cabinet Lock B Panel

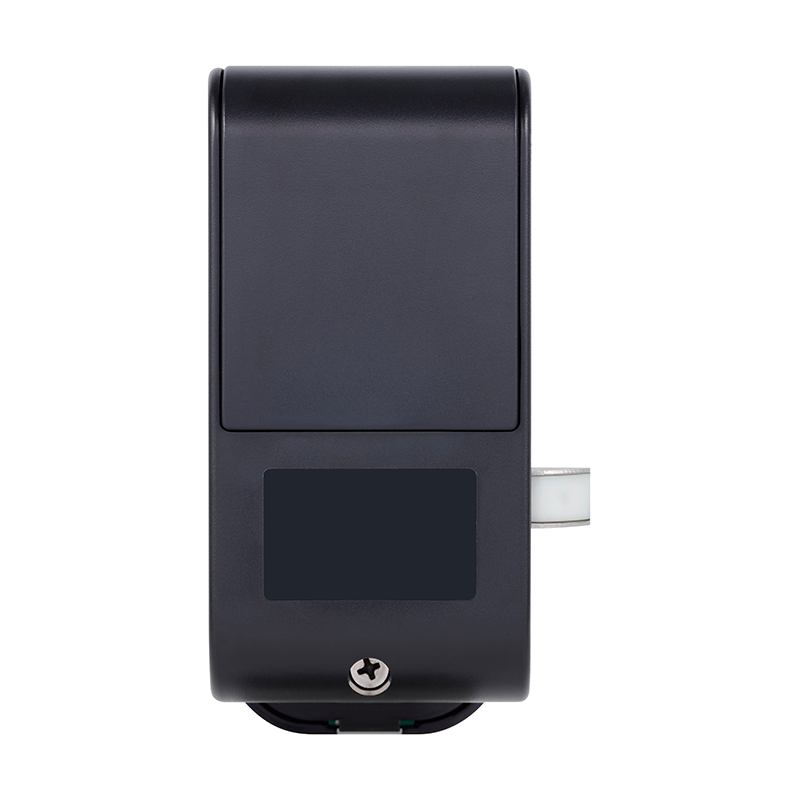

  • C5 cabinet lock B back

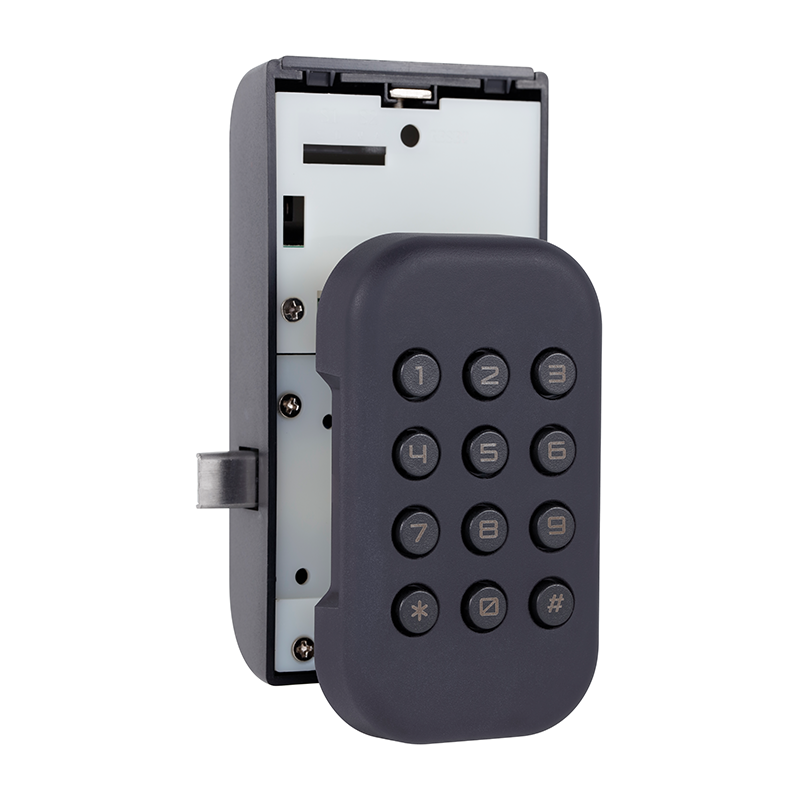

  • C5 cabinet lock B front side

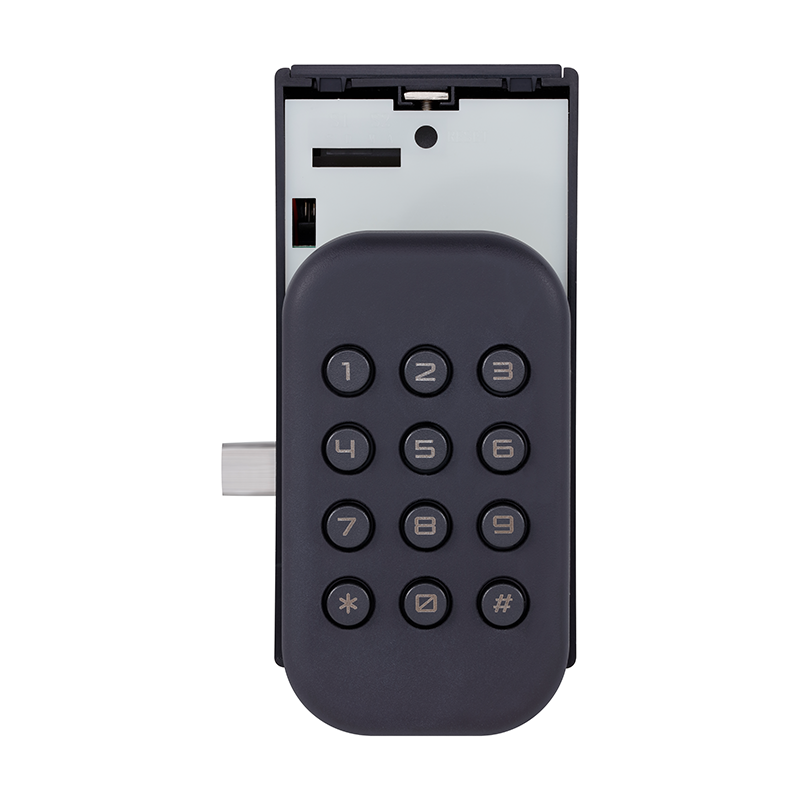

  • c5 Cypress lock B front

C5 Locker Lock

RFID Specification:

  • Pin-code access solution with both public and private mode,authority management could meet a various application scenarios for projects.

  • Anti-pry alarm and other functions to help you safely keep the items.

Main Features of the Product

  • Unlock method: Pin-code access verification.

  • Functions: One-time or permanent password function can suit for more scenario.

  • Authority management: It has two levels of management authority,which is convenient for commercial management.The second level user can only access when master authority approved.

  • Anti-pry alarm: When it detects any prying,it will trigger the warning.

  • Scramble code: You can enter random numbers prior to the right code when it is likely of exposing the password to others.

  • Automatic/manual lock mode: It can switch between automatic locking mode and manual locking mode to meet different scenarios.

  • Low power warning: It will makes sound to alert you it's time to replace batteries.

Technical Data

PC(Front Body)
Material: ABS(Back Body)
104×60×19mm(Front Body)

Dimension:               139×65×27mm(Back  Body)

Emergency Cylinder:     No
Battery                  4×AA
Humidity:                RH(%):10%~93%
Operating Temperature:  -10 C~55C
Code: Up to 2 groups(1 Master code,1User code)
Card:                    No
Door Type:              Wood,Steel
Door Thickness Range:   0.47”~0.98”(12~25mm)
