Electronic Hotel Lock -Base RFID (9004 Series)



  • • Be-Tech BASE RFID offers the latest and reliable
  • • Radio Frequency Identification (RFID) technology and high cost performance solution to go contactless Be-Tech electronic lock.
  • • Be-Tech BASE RFID offers the most flexible solution for future All-in-one card applications.



RFID Specification:

  • 13.56MHz technology

  • Compatible with the following standard: ISO 14 443 A (MIFARE)

  • Eleven free sectors for future All-in-one card application use

Main Features of the Product

  • Stand alone electronic lock with RFID technology.

  • High security stainless steel mortise lockcase available in ANSI, AUS and EURO versions.

  • Zinc alloy handle with long lasting painting finish.

  • 3-point stainless steel latch construction with antifriction mechanism.

  • Mortise equipped 20mm throw high strength deadbolt.

  • Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.

  • ADA compliant (guest with physical disabilities).

  • Future proof re-programmable FLASH RAM lock memory.

  • Powered by four AA alkaline batteries that provide up to 1 year normal life time.

  • 1000 events audit trail.

  • Compatible with BIS HOTEL software platform.

  • High security mechanical override cylinder available.

9004 1

Technical Data



Power : 4 x 1.5V AA alkaline batteries
Battery Location: Inside of the back lock
Material  Handles: Zinc Alloy
Lock body: Stainless steel quality SUS304
Metal Finishes: Silver, Mocha Red, Brown
Emergency Opening Options: Emergency Opening with Mechanical cylinder
Locking Mechanism: Electro-mechanical locking mechanism
Door Thickness: 35- 80mm (only for EURO mortise)
System Software Compatibility: BIS Hotel
Storage Temperature: -40°C~80° C, non-condensing environment
Tested Operating Temperature : Tested from :-20°C~66°C

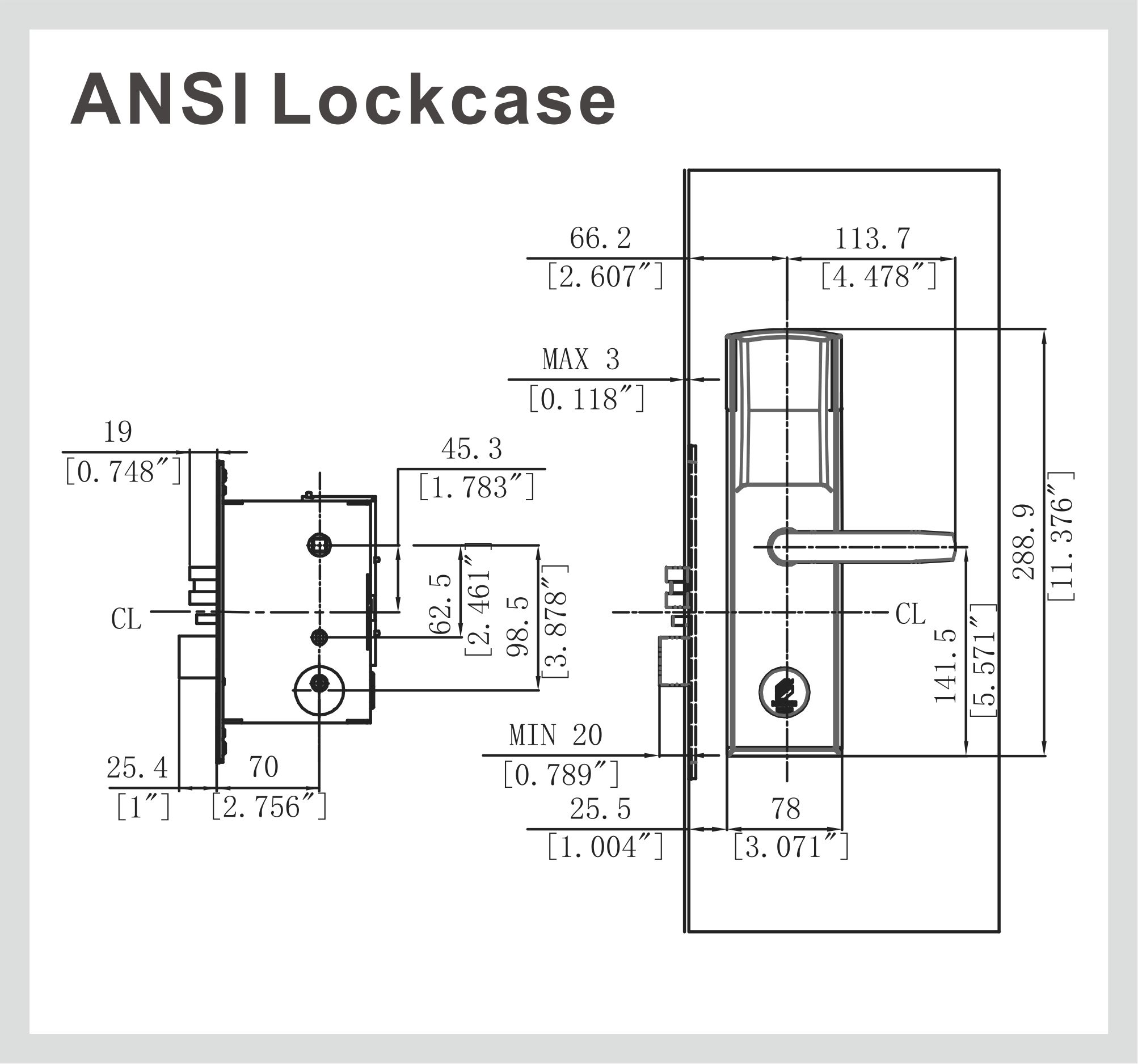

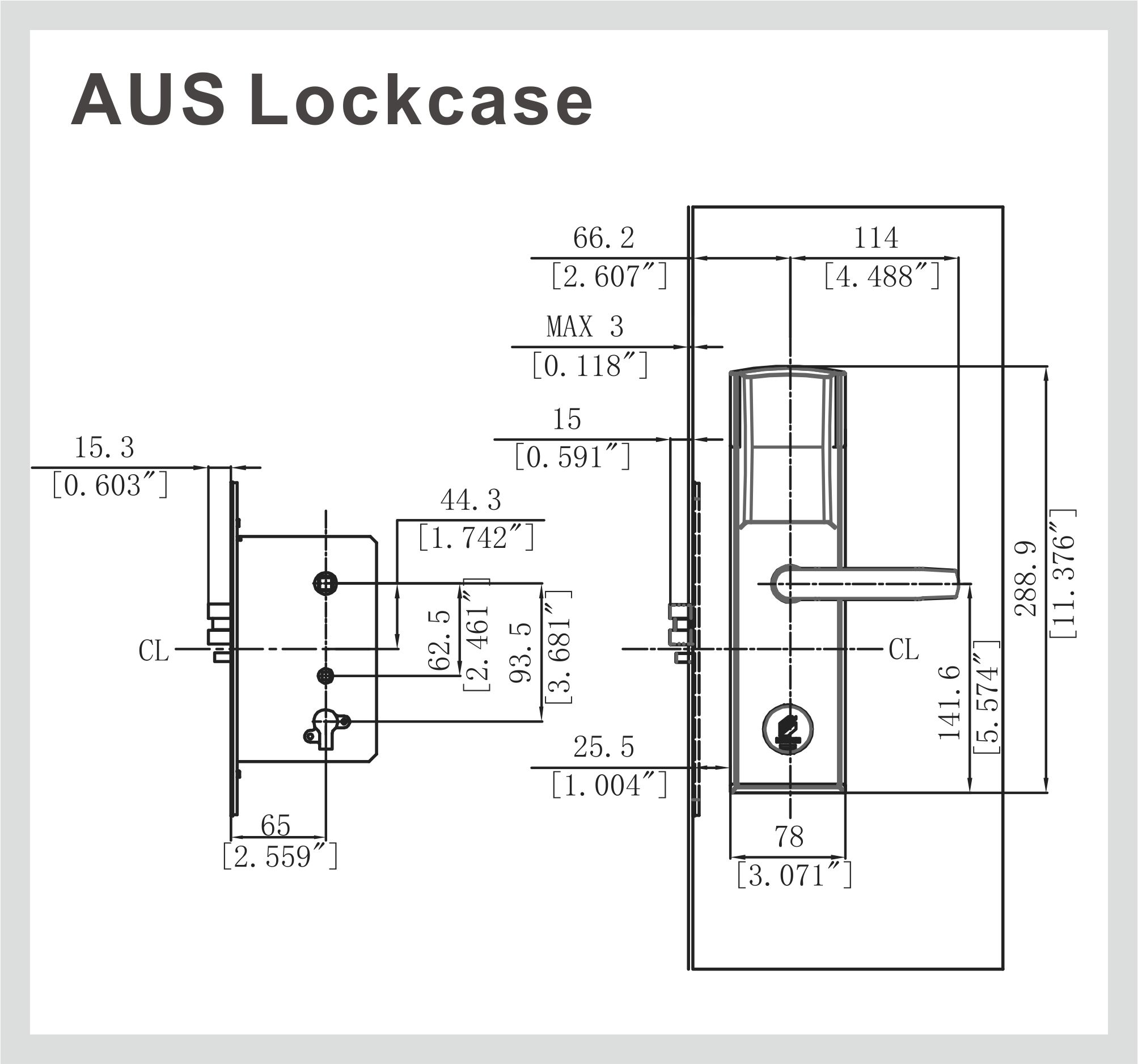

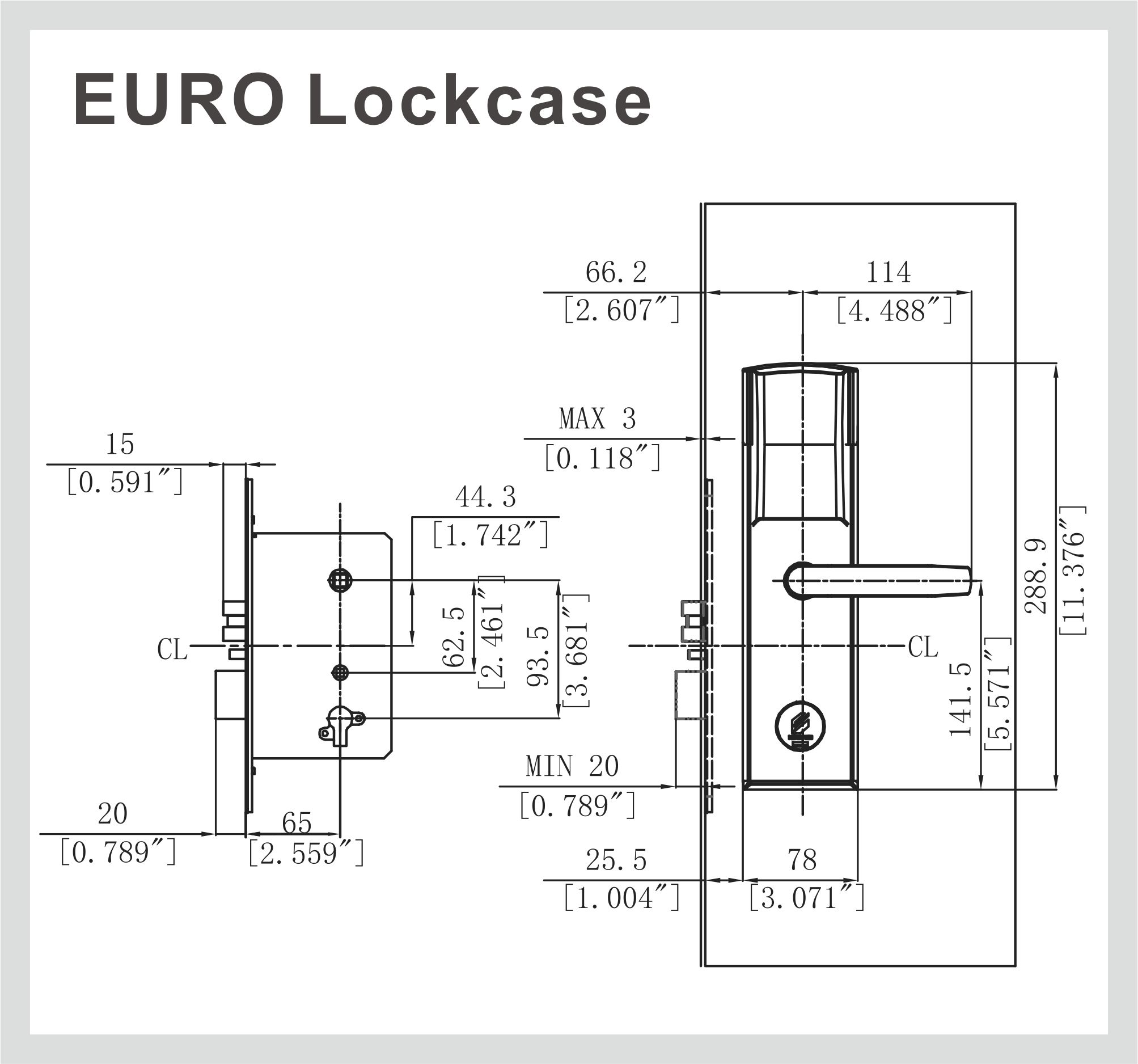

Lockcase Dimensions

ANSI Lock Case Variants ANSI DB ANSI Lock Case Widths 28mm/ 1.10 inches 31.5mm/ 1.24 inches ANSI Backset 70mm / 2.76 inches EURO Lock Case Variants EURO DB, available in: Australia version(AUS) EURO Lock Case Widths 22mm I 0.87 inches EURO Backsets 65mm / 2.56 inches

  • 9004 1
  • 9004 2 副本 副本
  • 9004 4 副本
  • 1 4
  • 2 4
  • 3 3
  • 9004 1
  • 9004 2 副本 副本
  • 9004 4 副本
  • 1 4
  • 2 4
  • 3 3
