Descriptions:
Be-Tech BASE RFID offers the latest and reliable Radio Frequency Identification (RFID) technology and high cost performance solution to go contactless Be-Tech electronic lock.
Be-Tech BASE RFID offers the most flexible solution for future All-in-one card applications.
Stand alone electronic lock with RFID technology.
Fire Listed for usage on fire doors (BS, EN).
High security stainless steel mortise lockcase available in ANSI, AUS and EURO versions.
CE, UL approved.
Stainless steel handle with high strength central spindle.
3-point stainless steel latch construction with antifriction mechanism.
Mortise equipped 20mm throw high strength deadbolt.
Panic release function – the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.
ADA compliant (guest with physical disabilities).Future proof re-programmable FLASH RAM lock memory.
Powered by 4AA batteries that provide up to 1 year normal life time.
400 event audit trail.
Compatible with BIS HOTEL software platform.

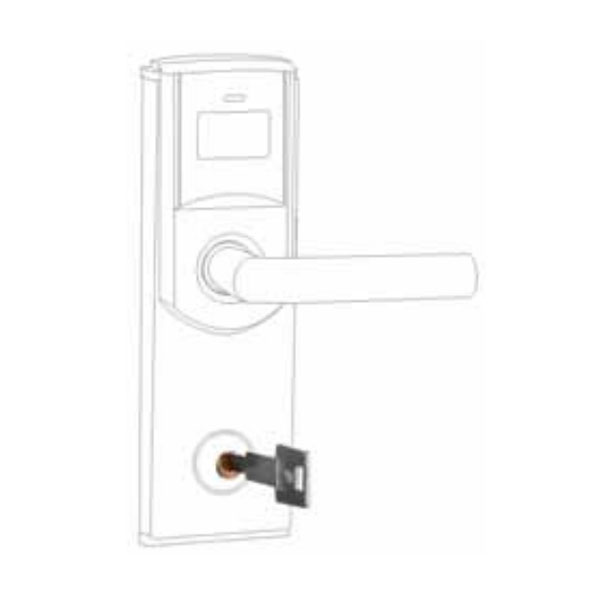

High security mechanical override cylinder available.
| Parts | Specifications |
| Power | 4x 1.5V AA alkaline batteries |
| Battery Location | Inside of the back lock |
| Inside of the back lock | Material |
| Material | Handles: Stainless steel quality SUS304 |
| Lock body: Stainless steel quality SUS304 | |
| Metal Finishes | Silver, Gold, Matte Black |
| Emergency Opening Options | Emergency Opening with Mechanical |
| cylinder | |
| Locking Mechanism | Electro-mechanical locking mechanism |
| Door Thickness | 35 80mm (only for EURO mortise) |
| System Software Compatibility | BIS Hotel |
| Storage Temperature | Workable -20’C-60’C: non-condensing |
| environment | |
| Tested Operating Temperature | Tested from -25’C~70’C |
| Certifications | Approved according to EN14846. |
| Fire approved according to EN 1634-1 | |
| Fire approved according to UL(timber doors) | |
| Supported RFID Standard | ISO 14443 A (MIFARE Classic) |
