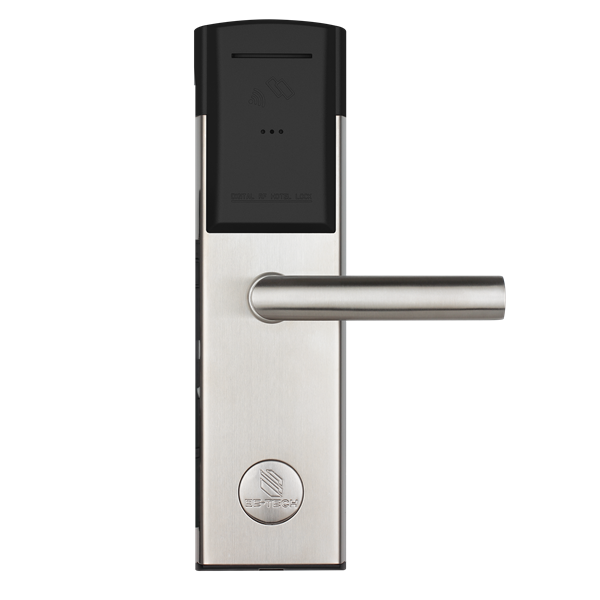

ELECTRONIC HOTEL LOCK- BASE RFID TYPICAL

Descriptions:
Be-Tech BASE RFID TYPICAL provides the latest Radio Frequency Identification technology with typical outline design.
Be-Tech BASE RFID TYPICAL is specifically designed for those people who are looking for better quality products with competitive price.

Main Features of the Product

  • Standalone electronic lock with RFID technology.

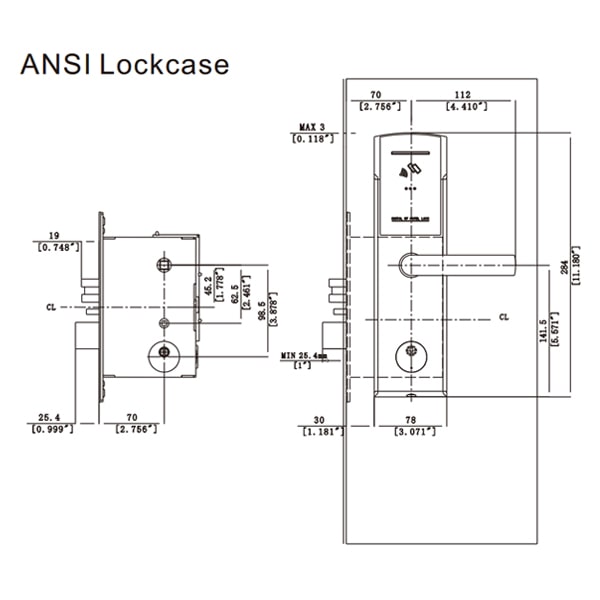

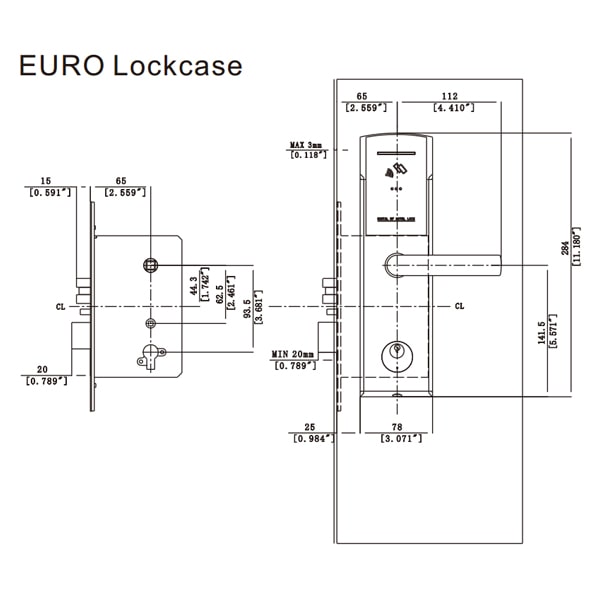

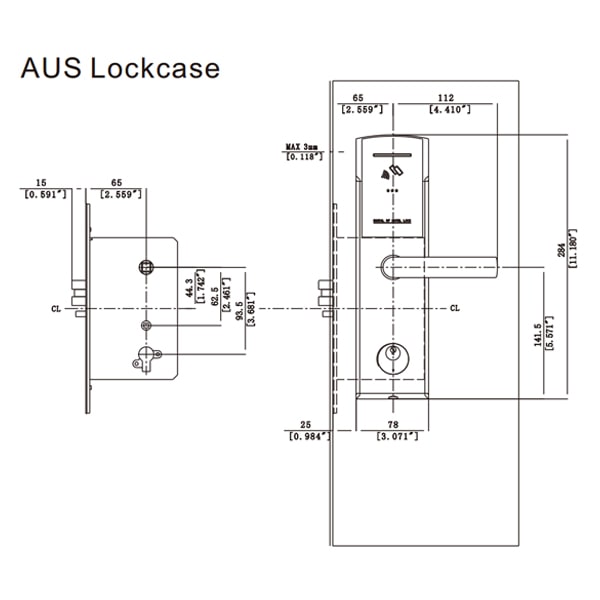

  • High security stainless steel mortise lock case available in ANSI, AUS and EURO versions.

  • Stainless steel handle with high strength central spindle.

  • 3-point stainless steel latch construction with antifriction mechanism.

  • Mortise equipped 20mm throw high strength deadbolt.

  • Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.

  • ADA compliant (guest with physical disabilities).

  • Future proof re-programmable FLASH RAM lock memory.

  • Powered by four AA batteries that provide up to1 year normal life time.

  • 414 events audit trail.

  • Compatible with BIS HOTEL software platform.

  • High security mechanical override cylinder available.

  • Compatible hotel function and residential function.

Technical Data

Power 4x 1.5V AA alkaline batteries
Battery Location Inside of the back lock
Material Handles: Stainless steel quality SUS304
Lock body: Stainless steel quality SUS304
Metal Finishes Silver, Gold, Matte Black
Emergency Opening Options Emergency Opening with Mechanical
cylinder
Locking Mechanism Electro-mechanical locking mechanism

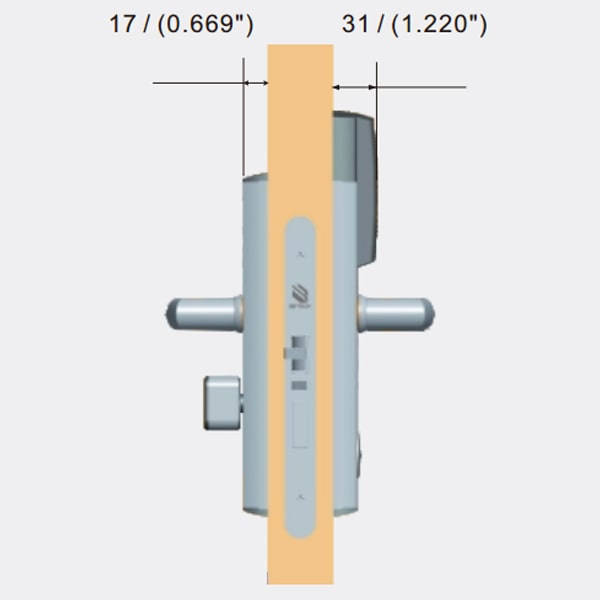

Door Thickness 35- 80mm (only for EURO mortise)
System Software Compatibility BIS Hotel
Storage Temperature Workable -20’C-60 C: non-condensing
environment Tested Operating Temperature
Tested Operating Temperature Tested from -25’C~70’C
Certifications Approved according to EN14846.
Fire approved according to EN 1634-1
Fire approved according to UL(timber doors)
Supported RFID Standard ISO 14443 A (MIFARE Classic)
