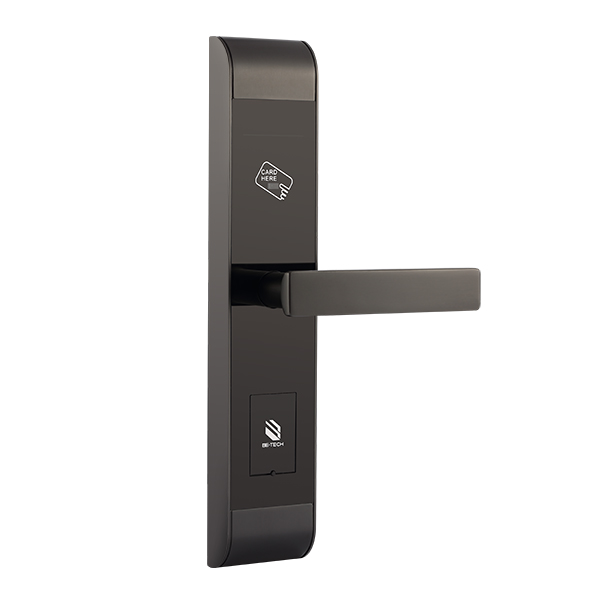

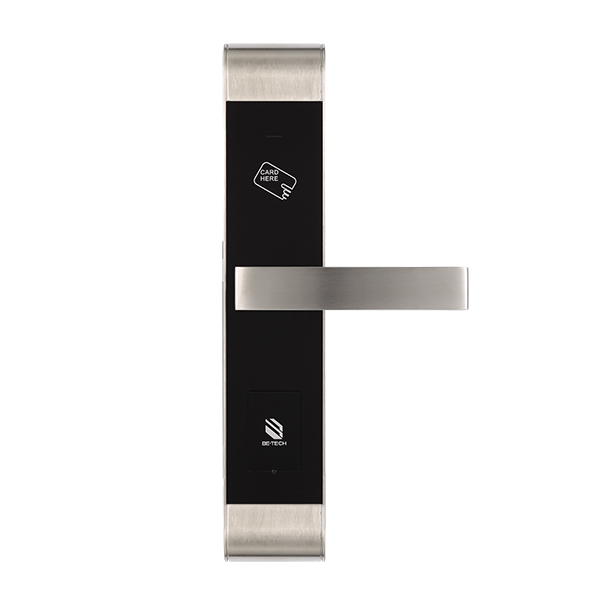

ELECTRONIC HOTEL LOCK - VISUAL II RFID

Descriptions:

Be-Tech VISUAL II RFID series is the latest electronic locks that use simple, fashionable and comfortable design.

Be-Tech VISUAL II RFID series is especially designed for the modern and fashionable hotels with the desire of making sure the lock perfectly blends into the fashionable hotel environment.

“The sparkling bright spot, not just the looks”. With the combination of Be-Tech VISUAL II RFID series matte black finish, it allows architects and designers maximum hotel’s fashion sense and enhancing the user experience to a new level.

RFID Specifications:

13.56MHz technology
Compatible with the following standard: ISO 14 443 A (MIFARE)
11 free sectors for future All-in-one card application use

Main Features of the Product

  • Stand alone electronic lock with RFID technology.

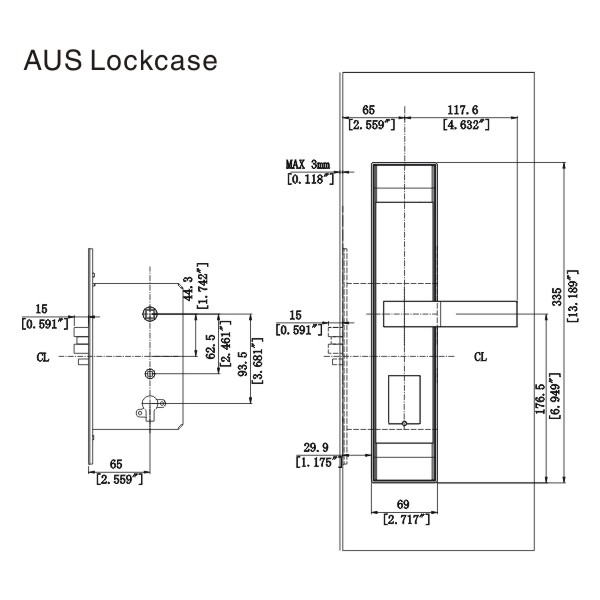

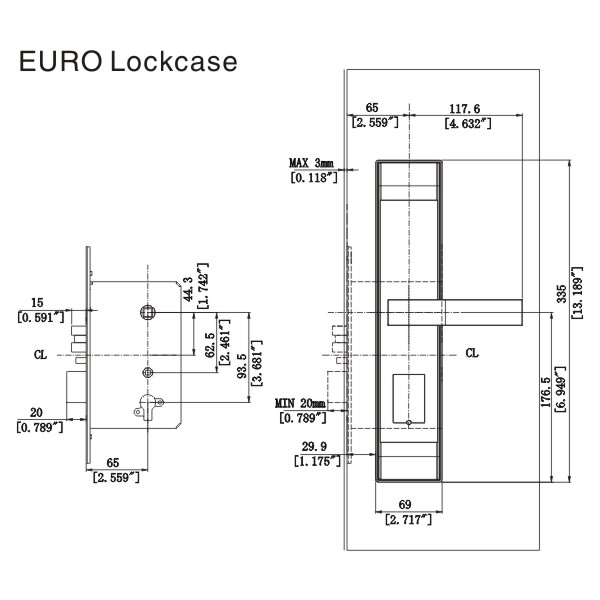

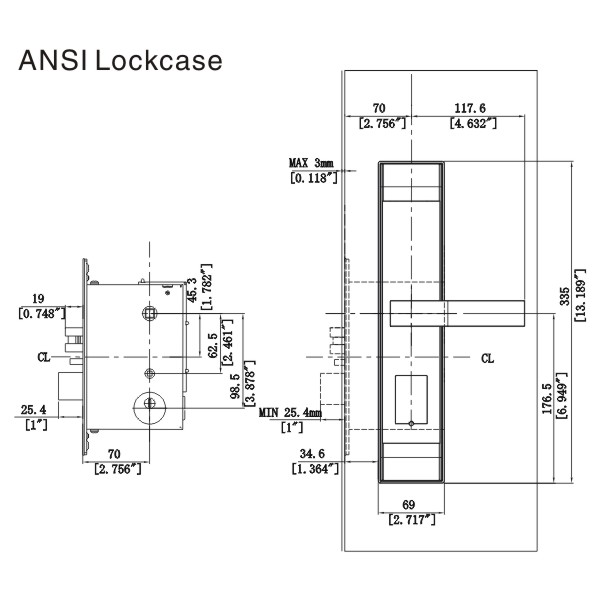

  • High security stainless steel mortise lockcase availablein ANSI, AUS and EURO versions.

  • Stainless steel handle with long lasting painting finish.

  • 3-point stainless steel latch construction with antifriction mechanism.

  • Mortise equipped 20mm throw high strength deadbolt.

  • Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.

  • ADA compliant (guest with physical disabilities).

  • Future proof re-programmable FLASH RAM lock memory.

  • Powered by four AA batteries that provide up to 1 year normal life time.

  • 414 event audit trail.

  • Compatible with BISHOTEL software platform.

  • High security mechanical override cylinder available.

  • Compatible hotel function and residential function.

Technical Data

Parts Specifications
Power 4x 1.5V AA alkaline batteries
Battery Location Inside of the back lock
Material Handles: Stainless steel quality SUS304
Lock body: Stainless steel quality SUS304
Metal Finishes Silver, Matte Black
Emergency Opening Options Emergency Opening with Mechanical cylinder
Locking Mechanism Electro-mechanical locking mechanism
Door Thickness 35-80mm (only for EURO mortise)
Storage Temperature Workable -20’C-60’C: non-condensing environment
Tested Operating Temperature Tested from -25’C~70’C
Supported RFID Standard ISO 14443 A (MIFARE Classic)
