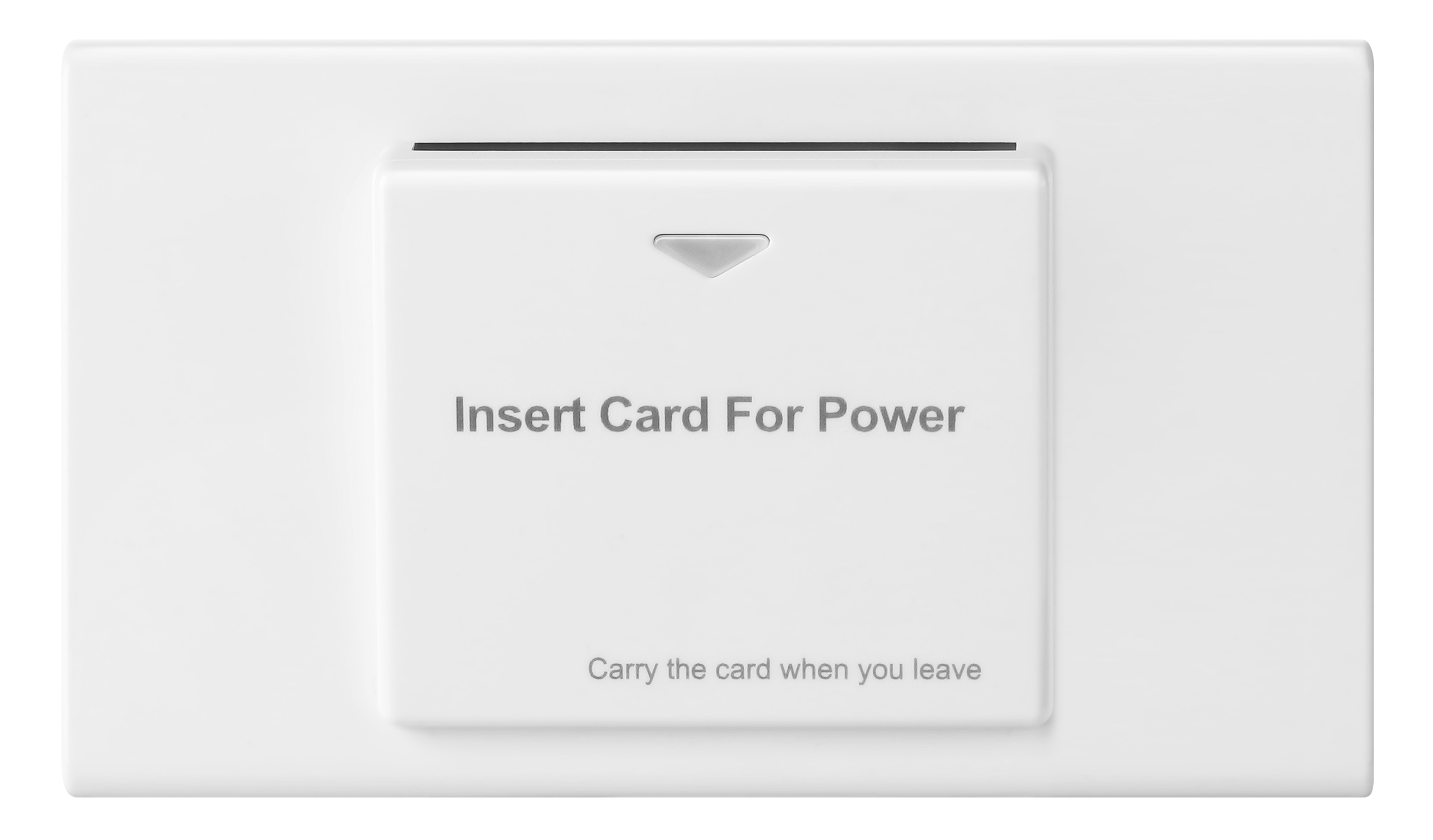

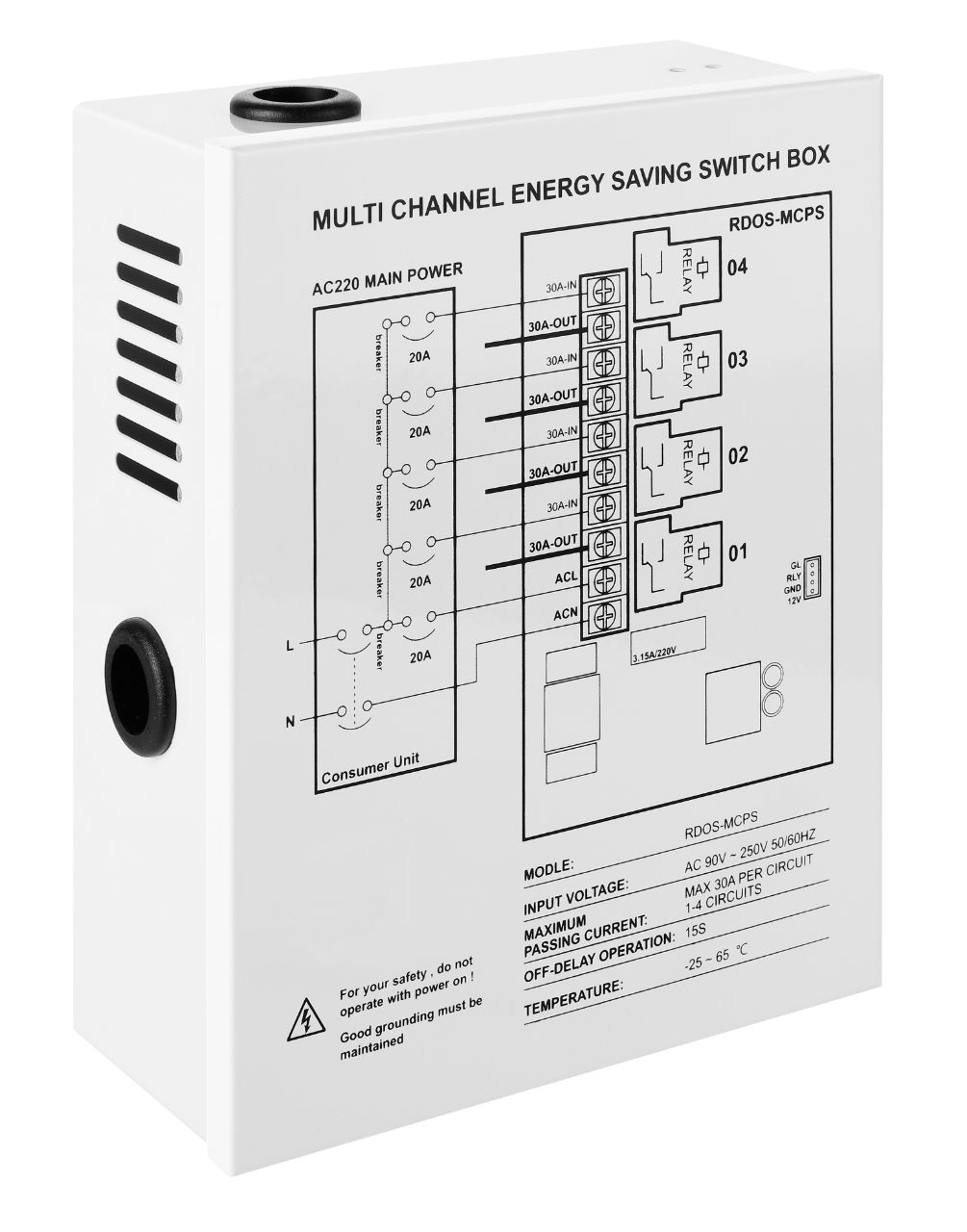

Multi-Channel Control Power Switch(8602 Series)

Descriptions:

8602 series multi-channel power switch, suitable for commercial use in hotels. 90-250V wide voltage, control 1-4 channels ≤30A load, with switch, 15 seconds delay, wide temperature and low power consumption. 8602A/B (120/86mm) optional, relay protection, V0 flame retardant, support multi-mode, identity recognition, 4 channels customizable, APP controllable, intelligent and safe.

Main Features of the Product

  • Four routes of 30A large load output control, wider use scenarios.

  • Equipped with relay protection function, the product has a longer service life.

  • After unplugging the card, there is a 15 second power outage delay, with a more user-friendly design.

  • V0 level flame retardant material ensures safer product use.

  • Multiple work mode options, with room number recognition and identity card recognition.

  • Four routes output can be personalized to meet more scene requirements.

  • The strong current box and weak current control unit work in different zones.

  • Mobile App Setting.

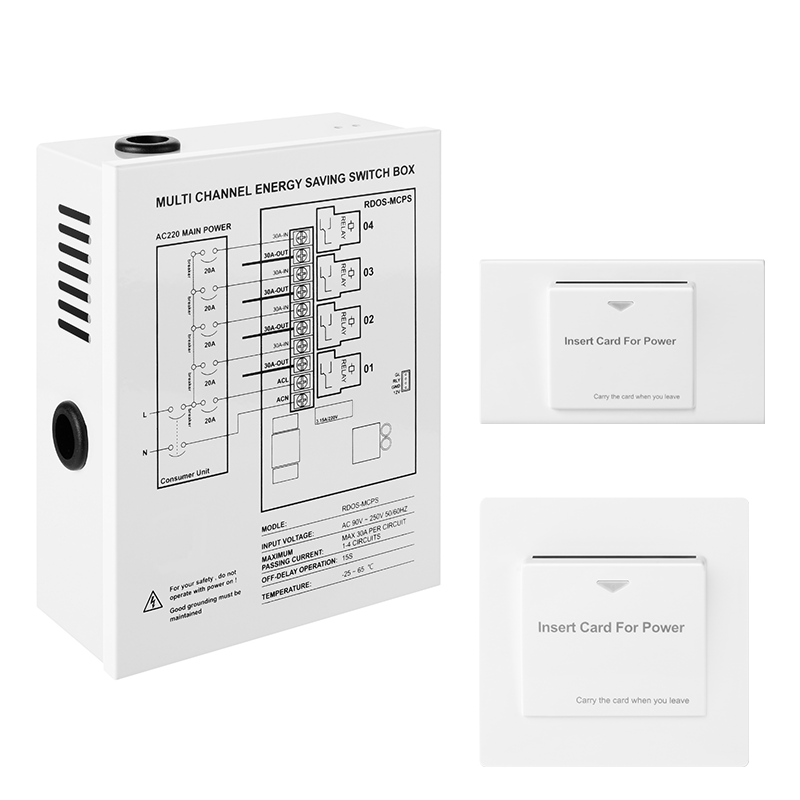

Multi Channel Control Power Switch 1

Technical Data

Technical Data
Voltage 90~250V AC 50/6Hz
Load Control 1-4 Routes 30A/Route
Control Mode Open / Close
Delay Off 15 Sec
Temperature -25C~65C
Standby Power Consumption 3W
